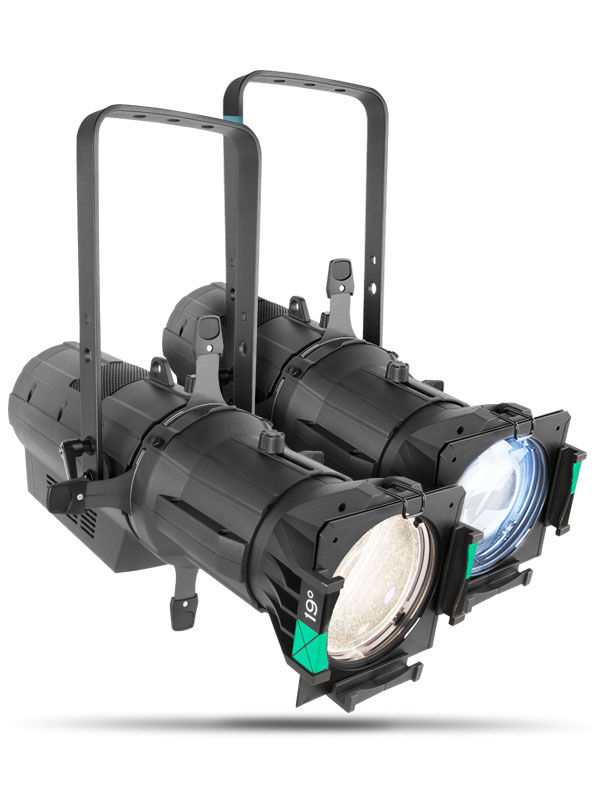

Ovation E-260WW - CHAUVET

The Ovation E-260WW from Chauvet Professional is a high-performance LED projector designed to deliver a warm, uniform white light, perfect for theatrical productions, concerts, and live events. Equipped with advanced LED technology, this model provides exceptional brightness while ensuring low energy consumption and a long lifespan. Key Features: Color Temperature: 3000K for a warm white light, ideal for creating elegant and natural atmospheres. Light Output: Thanks to its high-quality LEDs, the E-260WW ensures intense brightness while maintaining high precision in light diffusion. Precise Control: Equipped with adjustable dimming and light diffusion functions, offering complete control over the intensity and lighting atmosphere. Compact and Lightweight Design: Easy to install and integrate into various environments, this spotlight is perfectly suited to the needs of small spaces. Robust Construction : Designed to withstand the rigorous conditions of live performance environments, ensuring maximum reliability over time.


The Ovation E-260WW is the ideal tool for professionals looking to combine performance, flexibility, and lighting quality in their productions.

Optical

  • Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 230 W, (3.5 A), 5452 K, 50,000 hours life expectancy
  • Color Temperature (at full): (WW) 3149 K; (CW) 5452 K
  • CRI: (WW) 96; (CW) 96
  • Beam Angle (w/5° lens): 6°
  • Beam Angle (w/10° lens): 8°
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 13°
  • Beam Angle (w/26° lens): 16°
  • Beam Angle (w/36° lens): 20°
  • Beam Angle (w/50° lens): 28°
  • Beam Angle (w/15°–30° lens)(Narrow): 12°
  • Beam Angle (w/15°–30° lens)(Wide): 14°
  • Beam Angle (w/25°–50° lens)(Narrow): 21°
  • Beam Angle (w/25°–50° lens)(Wide): 22°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 46°
  • Dimming Modes: 4
  • Lumens (w/19° lens): (WW) 7.587; (CW) 9,530
  • Lumens (w/26° lens): (WW) 10,284; (CW) 13,368
  • Lumens (w/36° lens): (WW) 10.121; (CW) 13,184
  • Lumens (w/50° lens): (WW) 9.655; (CW) 12,672
  • Illuminance (w/5° lens): (WW) 41,400 lux @ 5 m; (CW) 49,200 lux @ 5 m
  • Illuminance (w/10° lens): (WW) 23,300 lux @ 5 m; (CW) 26,600 lux @ 5 m
  • Illuminance (w/14° lens): (WW) 13.439 lux @ 5 m; (CW) 16.787 lux @ 5 m
  • Illuminance (w/19° lens): (WW) 9.256 lux @ 5 m; (CW) 10.674 lux @ 5 m
  • Illuminance (w/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
  • Illuminance (w/36° lens): (WW)4.053 lux @ 5 m; (CW) 5185 lux @ 5 m
  • Illuminance (w/50° lens): (WW)1.703 lux @ 5 m; (CW) 2181 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): (WW) 16.827 lux @ 5 m; (CW) 19,900 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): (WW) 10.626 lux @ 5 m; (CW) 10.159 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): (WW) 7,210 lux @ 5 m; (CW) 9.219 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): (WW) 3.295 lux @ 5 m; (CW) 3.468 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Color Temperature Presets: (CW) No



Construction / Physical

  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  • Dimensions (w/5° lens extended): 42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)
  • Dimensions (w/10° lens extended): 34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)
  • Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  • Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  • Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 15.4 lb (7 kg)
  • Weight (w/5° lens): 21.2 lb (9.7 kg)
  • Weight (w/10° lens): 19.2 lb (8.8 kg)
  • Weight (w/14° lens): 20.8 lb (9.43 kg)
  • Weight (w/26° lens): 19.4 lb (8.80 kg)
  • Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
  • Weight (w/25°–50° lens): 27 lb (12.25 kg)
  • Exterior Color: Black or White
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)



Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)



Control

  • Control Protocol: (WW) DMX RDM; (CW) DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: (WW) 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: (WW) 236 W, 1.944 A @ 120 V, 60 Hz; (CW) 225 W, 1.84 A @ 120 V, 60 Hz
  • Power and Current: (WW) 244 W, 1.167 A @ 208 V, 60 Hz; (CW) 230 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: (WW) 243 W, 1.053 A @ 230 V, 50 Hz; (CW) 231 W, 1.0 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP20, dry location



What's Included

  • Ovation E-260WW/Ovation E-260CW
  • Neutrik powerCON power cord



Required Accessories

  • Lens Tube: (WW) 19°, 26°, 36°, 50°
  • Lens Tube: 14° (CW), 19°, 26°, 36°, 50°



Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik powerCON cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • RDM2go
  • Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
  • Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
